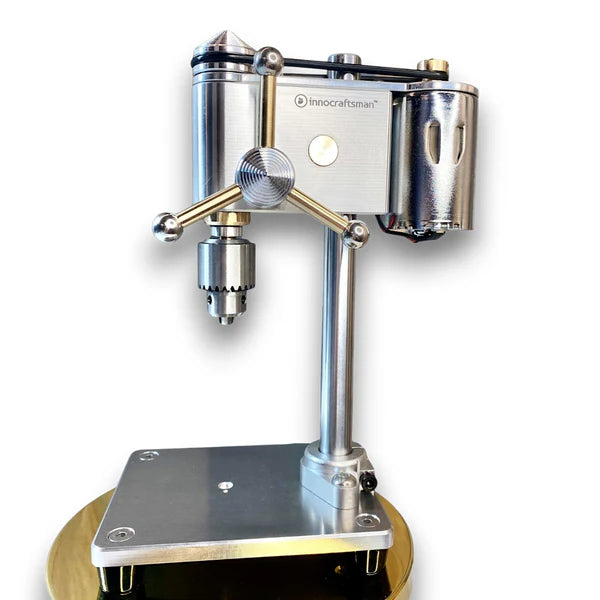

Innocraftsman™ Mini Drill Press

Name: Innocraftsman™ Mini Drill Press
Brand: Sunfire Gold
Price: 35.99 USD
Availability: InStock

$35.99 USD

~~$59.99 USD~~ $35.99 USD

Sale Sold out

Quantity

High-Quality Construction: Made from premium, durable materials, including an aluminum alloy body and brass spindle, ensuring long-lasting performance and industrial-grade precision
Available in 4 versions: a Universal version with a clamping range of 0.3 to 4 mm; 3.175 mm Fixed version for precision drilling tasks such as watch repair; PowerPro Universal for more complex tasks and handles tougher materials with ease, thanks to its powerful motor and gear-belt drive and PowerPro with Micrometer for precise depth adjustment.
Adjustable Power Supply: Equipped with a adjustable power supply with speed control, has a voltage range between 3 and 12V (regual versions) or 3-24V (PowerPro version) . It can drill holes in soft metals, copper, aluminum, wood and plastic...
Compact and Portable: The compact design of this tool makes it highly portable, with the standard version weighing just 800g and the PowerPro version at 1300g.

PERFECT FOR PRECISION WORK

Ideal for tasks requiring fine detail and accuracy, such as watch repair, printed circuit board drilling, jewelry making and more. A must-have tool for both hobbyists and professionals!

COMPLETELY STABLE DRILLING

HIGH-PRECISION DRILLING WITH NO BIT RUNOUT

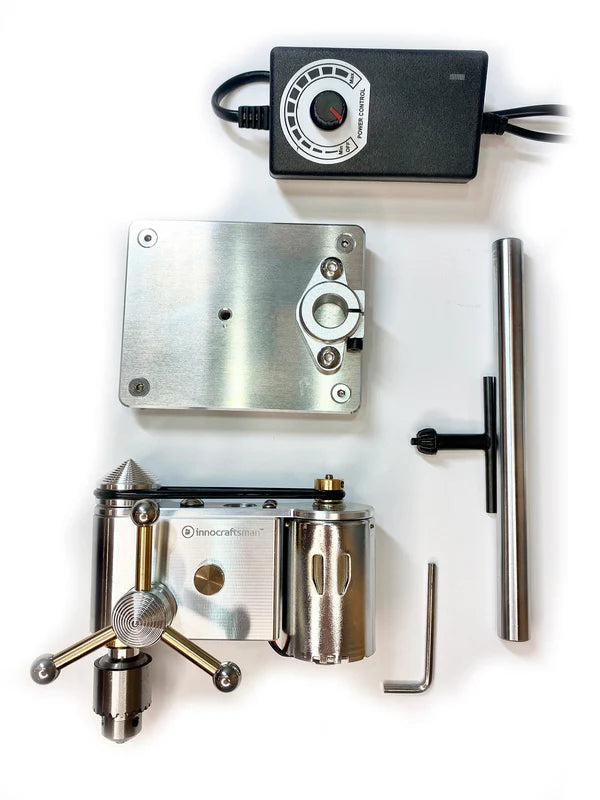

HOW TO ASSEMBLE AND USE

AVAILABLE IN 4 VERSIONS:

UNIVERSAL 0.3-4mm 12V MODEL:

This option offers a wider clamping range 0.3-4mm and has an accuracy of approximately 0.05mm, making it versatile for various drill bit sizes

Specification:

Belt type: rubber belt
Clamping range: 0.3-4mm
Drill runout: 0.05mm
Product size: 100 * 80 * 180mm
Max clearance between drill chuck and base: 100mm
Weight: 800g
Column Diameter: 13mm
Column (Rod) Length: 165mm (extended 200mm rod is available separately)
Drilling stroke: 13mm
Height to workbench: 70mm
Power supply (included): 3-12v / 2A (adjustable)
Speed: 200-4800 RPM
Voltage: 100-240V

Collet 3.175mm 12V MODEL:

This model is specifically designed for drill bits with a shank diameter of 3.175mm (like this one). It provides higher precision with an accuracy of within 0.02mm, ensuring stable and accurate drilling, ideal for delicate tasks like watch repair.

Specification:

Belt type: rubber belt
Clamp: 3.175mm
Drill runout: 0.02mm
Product size: 100 * 80 * 180mm
Max clearance between drill chuck and base: ~100mm
Weight: 800g
Column Diameter: 13mm
Column (Rod) Length: 165mm (extended 200mm rod is available separately)
Drilling stroke: 13mm
Height to workbench: 70mm
Power supply (included): 3-12v / 2A (adjustable)
Speed: 200-4800 RPM
Voltage: 100-240V

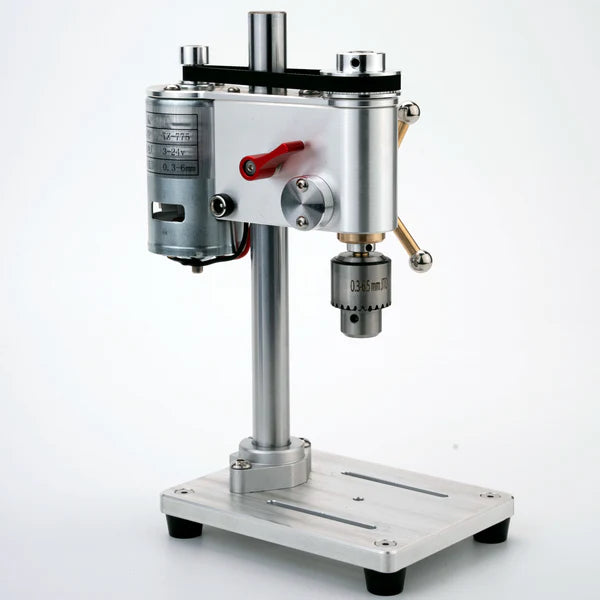

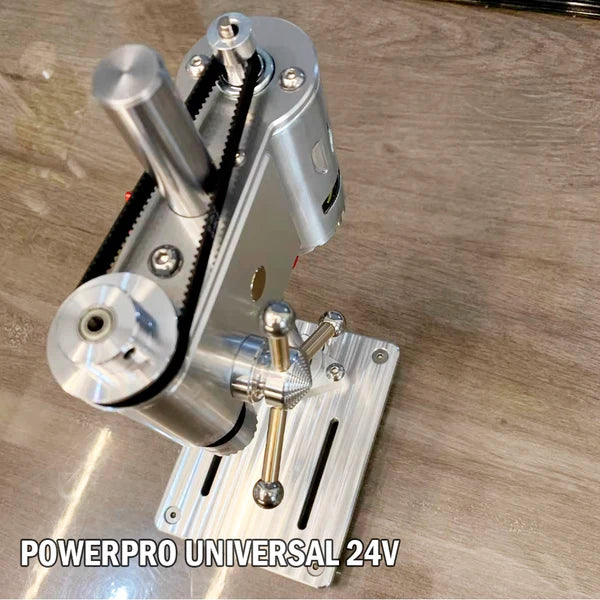

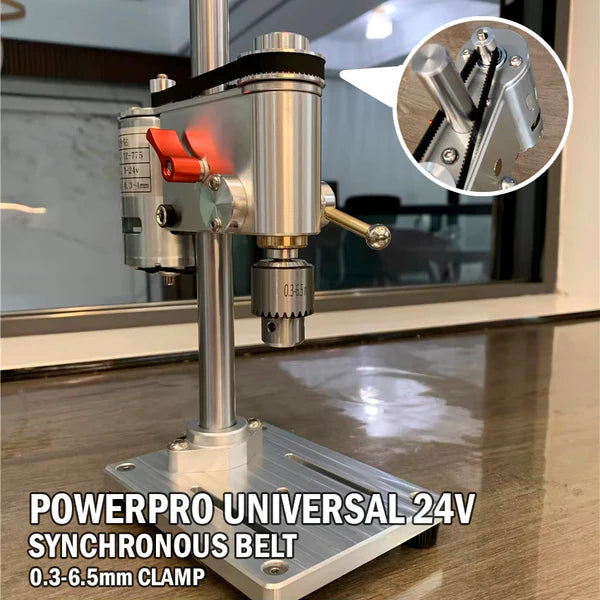

PowerPro UNIVERSAL 24v (Synchronous Belt) MODEL:

It’s built for more complex tasks and handles tougher materials with ease, thanks to its powerful motor and gear-belt drive. With a voltage range from 3 to 24V and a clamping range of 0.3 to 6.5mm, this tool is ideal for precision work as well as demanding projects.

Specification:

Belt type: synchronous belt
Clamping range: 0.3-6.5mm
Drill runout: 0.05mm
Product size: 120 * 90 * 200mm
Max clearance between drill chuck and base: ~120mm
Weight: 1300g
Column Diameter: 16mm
Column (Rod) Length: 200mm (extended 230mm rod is available separately)
Drilling stroke: 19mm
Height to workbench: 70mm
Power supply (included): 3-24v / 2A (adjustable)
Speed: 200-4800 RPM
Voltage: 100-240V

PowerPro 24v with Micometer:

The built-in micrometer enables precise control over the drilling depth, allowing you to achieve uniform and accurate hole depths every time. This model is also equipped with a powerful 3 to 24V motor and gear-belt drive. View more
